- 2024
- Mondraker

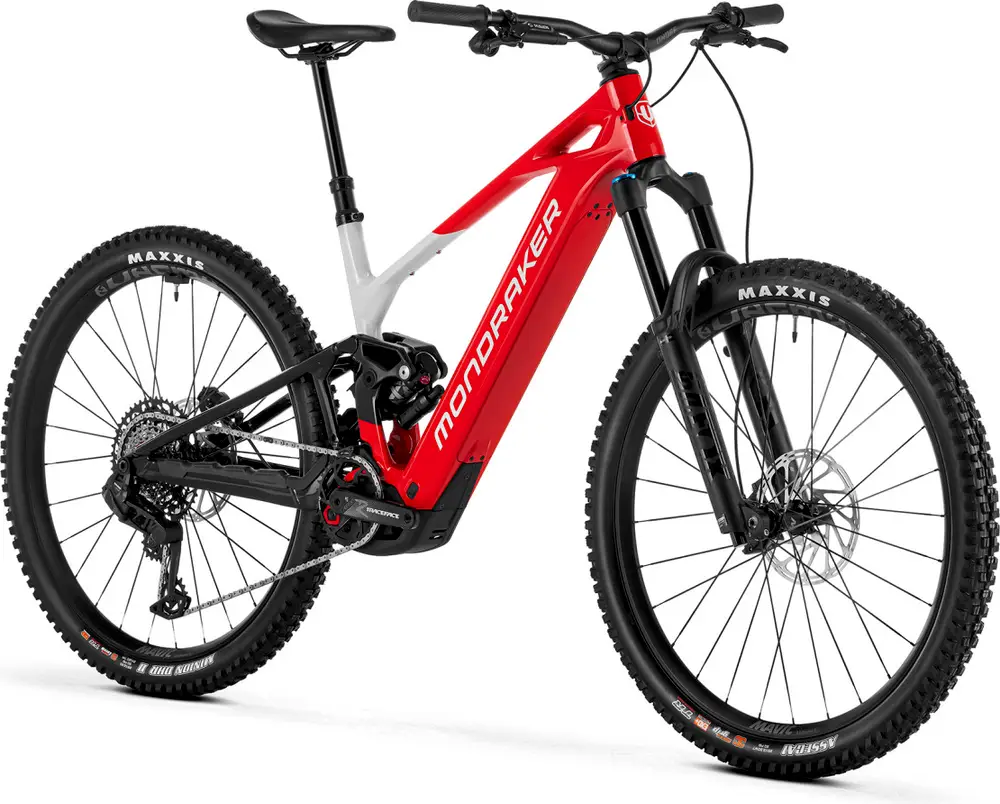

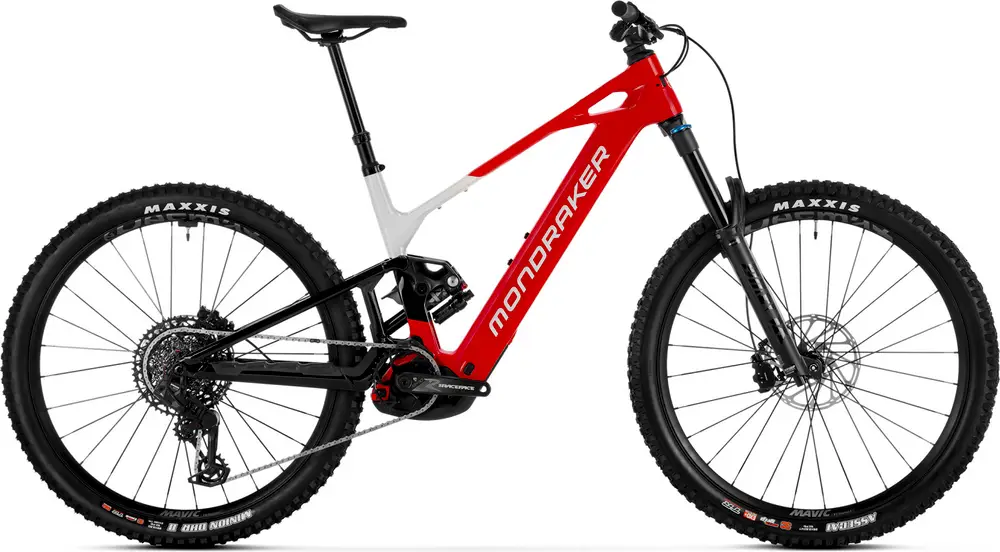

CRAFTY CARBON R
| Brak ocen | Zaloguj się i oceń |
Rower elektryczny enduro z pełnym zawieszeniem 29″ z karbonową ramą i komponentami wysokiej klasy.
Cena katalogowa
33 129 zł
7795 €
Typ roweru MTB
Kategoria Enduro
Waga 23,9 kg
Rama Carbon
Zawieszenie Full, 160mm, 150mm
Widelec Fox Performance Float 38
Amortyzator Fox Float X Performance
Koła 29″, Aluminum
Napęd 1 × 12 Electronic
Osprzęt Eagle AXS, S1000 Eagle Transmission
Silnik Bosch 600W 85Nm mid-drive
Bateria Bosch 800Wh
Hamulce SRAM Hydraulic Disc
Specyfikacja
konstrukcja
|
Rama |
Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers., Hanger Standard: UDH, Colors: Grey; Red / White |
|
Widelec |
Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload, Travel: 160mm, Spring Type: Air |
|
Amortyzator |
Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings, Travel: 150mm |
|
Łożysko |
Acros custom ZS56/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs without blocklock |
|
Mostek |
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
|
Kierownica |
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
|
Siodełko |
Ergon SM-10 |
|
Sztyca |
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm), Type: Dropper |
|
Pedały | |
|
Chwyty |
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
Osprzęt
|
Przerzutka tylna |
SRAM S1000 Eagle AXS T-Type, 12s |
|
Korba |
Race Face Aeffect-R ebike, 160mm, Rings: SRAM Eagle 34T T-Type, direct mount, steel, CL55 |
|
Manetki |
SRAM Eagle AXS Pod MMX, 12s |
|
Kaseta | |
|
Łańcuch |
SRAM GX Eagle T-Type, 12s, Powerlock |
|
Napinacz Łańcucha | |
|
Hamulce |
Front: SRAM Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Type: SRAM Hydraulic Disc |
Koła
|
Obręcze |
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
|
Szprychy |
Mavic J-bend double butted, contactless lacing |
|
Piasta przednia |
Mavic, Boost 15x110mm, IS 6 bolts |
|
Piasta tylnia |
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
|
Opony |
Front: Maxxis Assegai 29×2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead, Rear: Maxxis Minion DHR II 29×2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
Komponenty elektryczne
|
Silnik |
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) |
|
Bateria |
Bosch Powertube 800Wh |
|
Wyświetlacz |
Kiox 400 / Bosch Mini Remote |
|
Ładowarka | |
|
Sterowanie |
