- 2024
- Mondraker

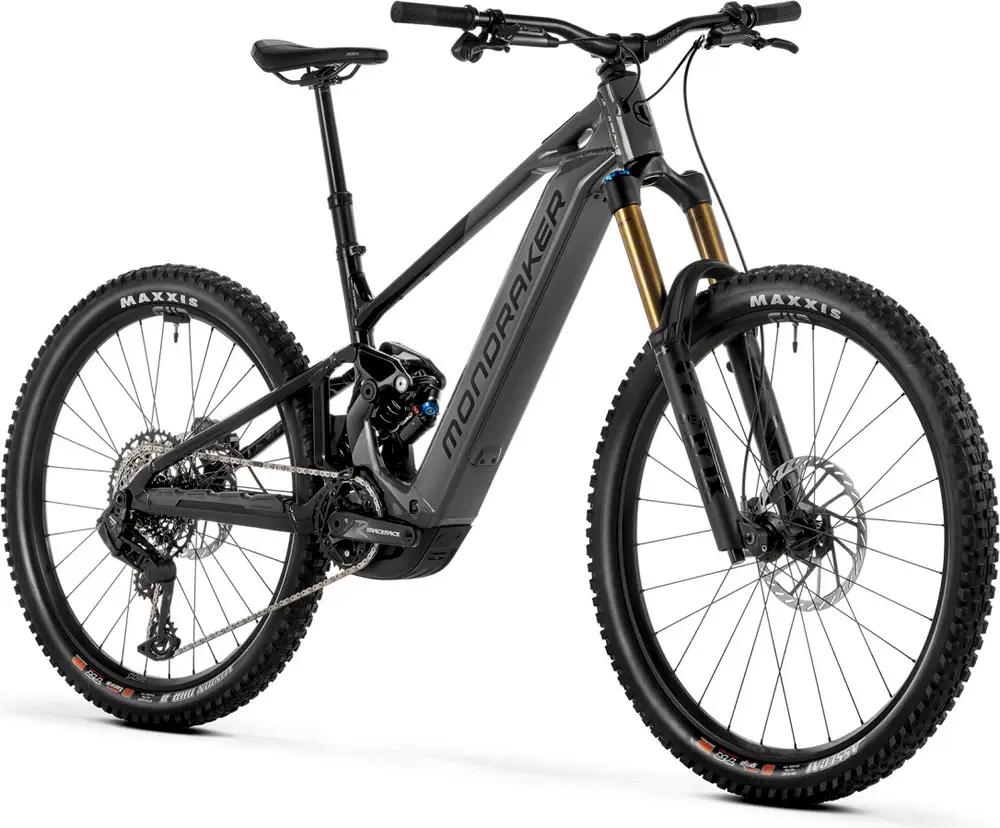

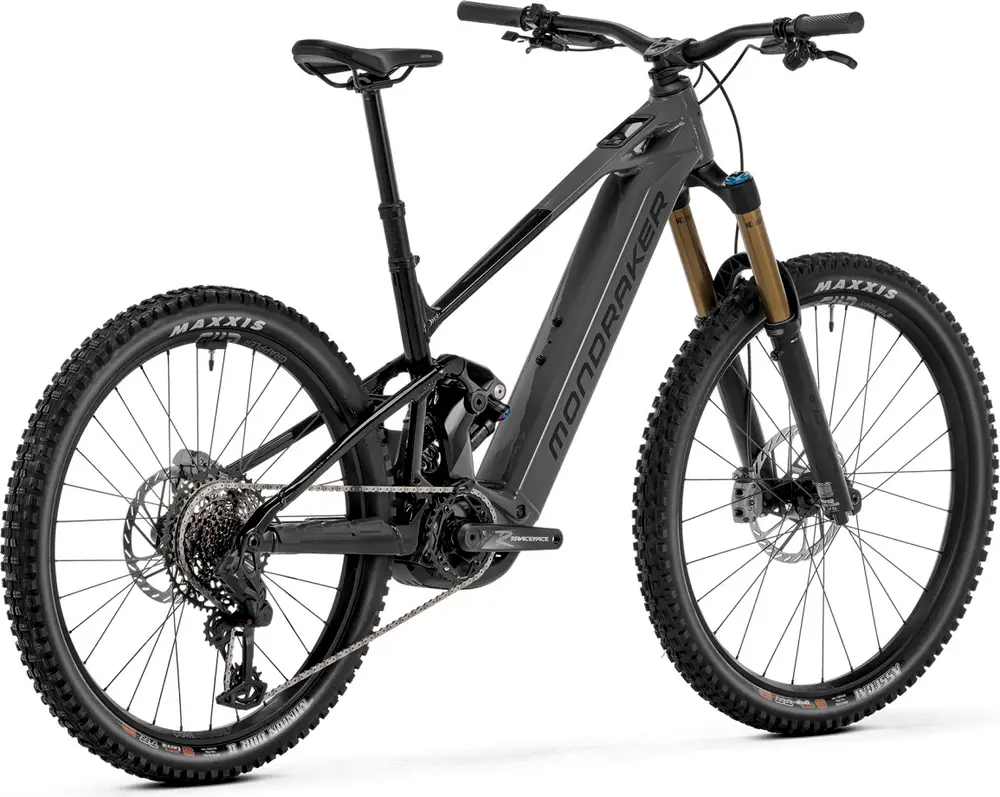

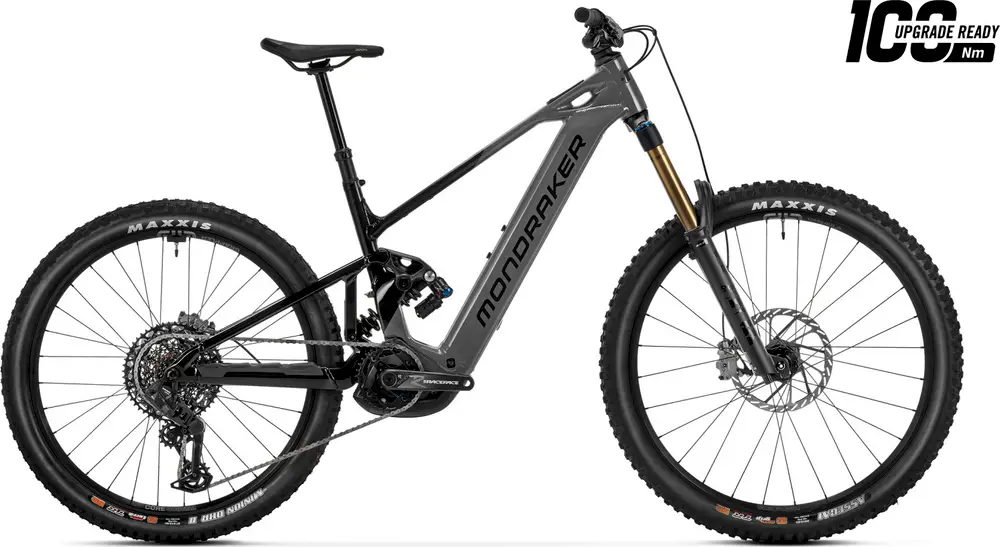

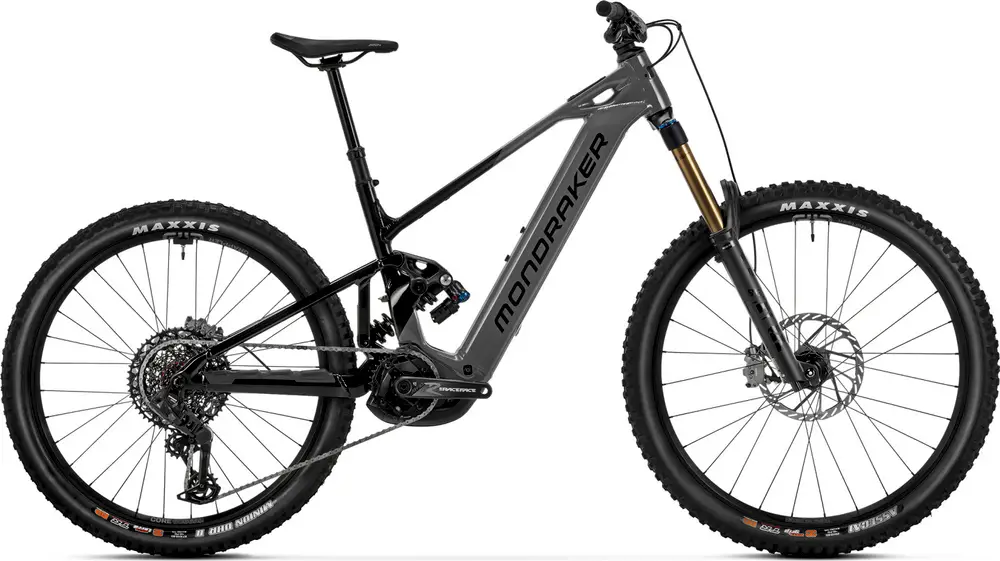

LEVEL RR
| Brak ocen | Zaloguj się i oceń |
Rower elektryczny enduro z pełnym zawieszeniem 29″/27,5″ z aluminiową ramą i komponentami wysokiej klasy.
Cena katalogowa
35 075 zł
8253 €
Typ roweru MTB
Kategoria Enduro
Waga 26,9 kg
Rama Aluminum
Zawieszenie Full, 180mm, 170mm
Widelec Fox Factory Float 38
Amortyzator Fox DHX2 Performance Elite
Koła 29″ / 27.5″, Aluminum
Napęd 1 × 12 Electronic
Osprzęt Eagle AXS, S1000 Eagle Transmission
Silnik Bosch 600W 85Nm mid-drive
Bateria Bosch 800Wh
Hamulce SRAM Maven Bronze Hydraulic Disc
Specyfikacja
konstrukcja
|
Rama |
Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers, Hanger Standard: UDH |
|
Widelec |
Fox 38 29 Float GRIPX2 Factory Kashima, 180mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload, Travel: 180mm, Spring Type: Air |
|
Amortyzator |
Fox DHX2 Performance Elite, 205x65mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings, Travel: 170mm, Spring Type: Coil |
|
Łożysko |
Onoff ZS44/ZS56, 1-1/8″, 1.5″ head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º |
|
Mostek |
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
|
Kierownica |
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
|
Siodełko |
FIZIK Terra Aidon X5 145mm |
|
Sztyca |
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm), Type: Dropper |
|
Pedały | |
|
Chwyty |
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
Osprzęt
|
Przerzutka tylna |
SRAM S1000 Eagle AXS T-Type, 12s |
|
Korba |
Race Face Aeffect ebike, All sizes: 160mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
|
Manetki |
SRAM Eagle AXS Pod MMX, 12s |
|
Kaseta | |
|
Łańcuch |
SRAM GX Eagle T-Type, 12s, Powerlock |
|
Napinacz Łańcucha | |
|
Hamulce |
Front: SRAM Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Type: SRAM Maven Bronze Hydraulic Disc |
Koła
|
Obręcze |
e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27”5 rear |
|
Szprychy |
e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers |
|
Piasta przednia |
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
|
Piasta tylnia |
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub |
|
Opony |
Front: Maxxis Assegai 29×2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead, Rear: Maxxis Minion DHR II 27’5×2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead |
Komponenty elektryczne
|
Silnik |
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) |
|
Bateria |
Bosch Powertube 800Wh |
|
Wyświetlacz |
Kiox 400 / Bosch Mini Remote |
|
Ładowarka | |
|
Sterowanie |
