- 2025
- Mondraker

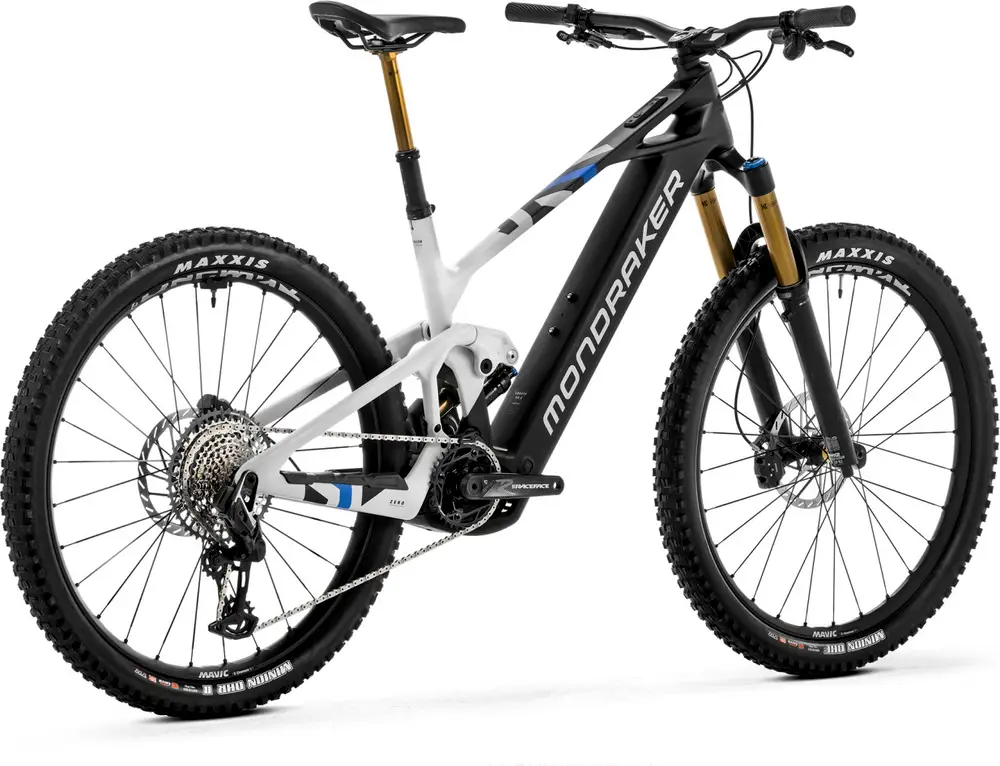

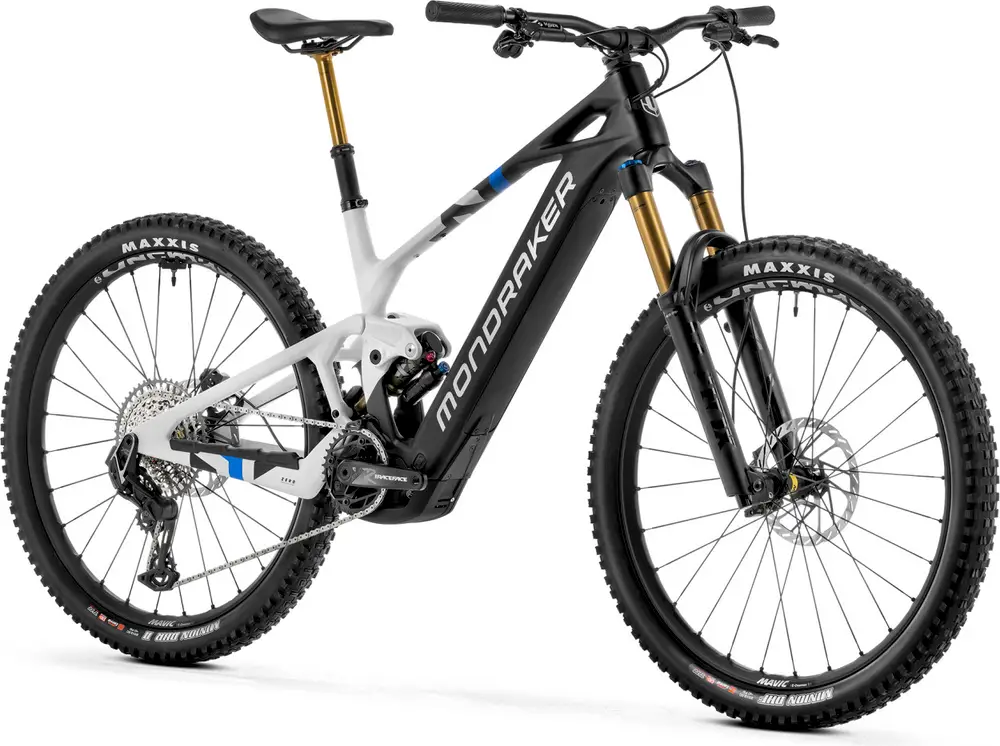

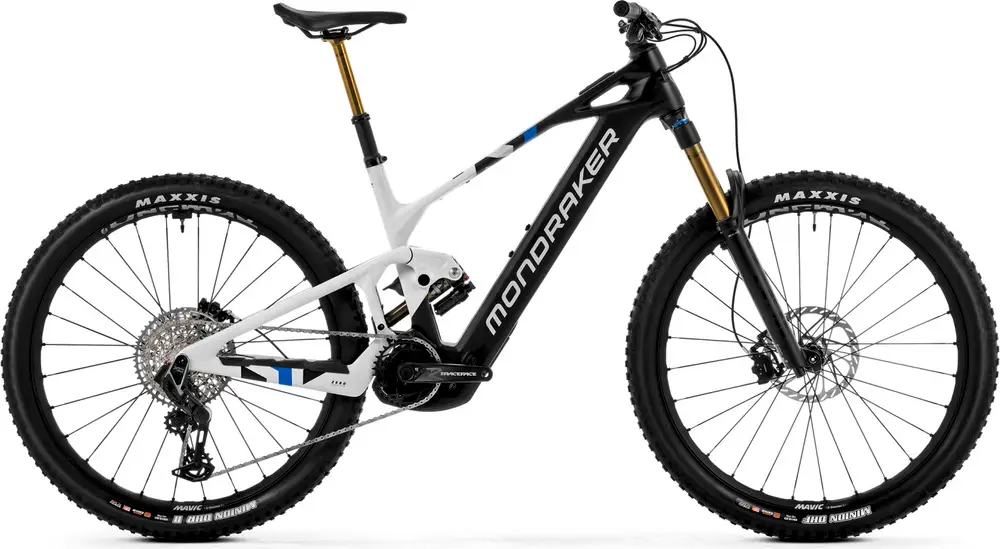

CRAFTY CARBON RR S
| Brak ocen | Zaloguj się i oceń |
Rower elektryczny enduro z pełnym zawieszeniem 29″ z karbonową ramą i komponentami najwyższej klasy.
Cena katalogowa
40 371 zł
9499 €
Typ roweru MTB
Kategoria Enduro
Waga 22,6 kg
Rama Carbon
Zawieszenie Full, 160mm, 150mm
Widelec Fox Factory Float 38
Amortyzator Fox Float X Factory
Koła 29″, Aluminum
Napęd 1 × 12 Electronic
Osprzęt X0 Eagle Transmission, Eagle AXS
Silnik Bosch 600W 85Nm mid-drive
Bateria Bosch 600Wh
Hamulce SRAM Maven Silver Hydraulic Disc
Specyfikacja
konstrukcja
|
Rama |
Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers., Hanger Standard: UDH |
|
Widelec |
Fox 38 29 Float GRIPX2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload, Travel: 160mm, Spring Type: Air |
|
Amortyzator |
Fox Float-X Factory Kashima EVOL LV, 185x55mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings, Travel: 150mm |
|
Łożysko |
Acros custom ZS56/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs without blocklock |
|
Mostek |
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
|
Kierownica |
Onoff S6 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
|
Siodełko |
Ergon SM-10 |
|
Sztyca |
Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size: 155mm -180mm, L size: 185mm -210mm, XL size: 185mm -210mm, Type: Dropper |
|
Pedały | |
|
Chwyty |
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
Osprzęt
|
Przerzutka tylna |
SRAM X0 Eagle AXS, T-Type, 12s |
|
Korba |
Race Face Aeffect-R ebike, 160mm, Rings: SRAM X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55 |
|
Manetki |
SRAM Eagle AXS Pod MMX, 12s |
|
Kaseta | |
|
Łańcuch |
SRAM GX Eagle T-Type, 12s, Powerlock |
|
Napinacz Łańcucha | |
|
Hamulce |
Front: SRAM Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Maven Silver, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Type: SRAM Maven Silver Hydraulic Disc |
Koła
|
Obręcze |
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes |
|
Szprychy |
Mavic straight-pull double butted, contactless lacing |
|
Piasta przednia |
Mavic, Boost 15x110mm, IS 6 bolts |
|
Piasta tylnia |
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub |
|
Opony |
Front: Maxxis Minion DHF 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Rear: Maxxis Minion DHR II 29×2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
Komponenty elektryczne
|
Silnik |
New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) |
|
Bateria |
Bosch Powertube 600Wh |
|
Wyświetlacz |
Purion 400 / Bosch Mini Remote / Bosch System Controller |
|
Ładowarka | |
|
Sterowanie |
