- 2024
- Mondraker

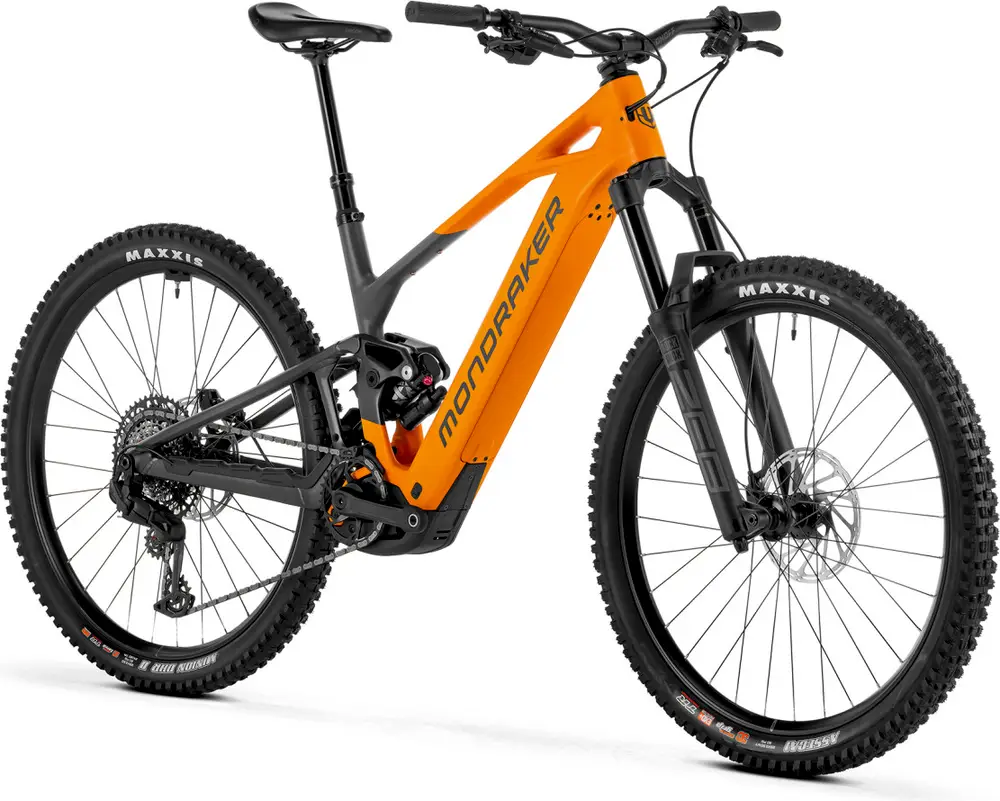

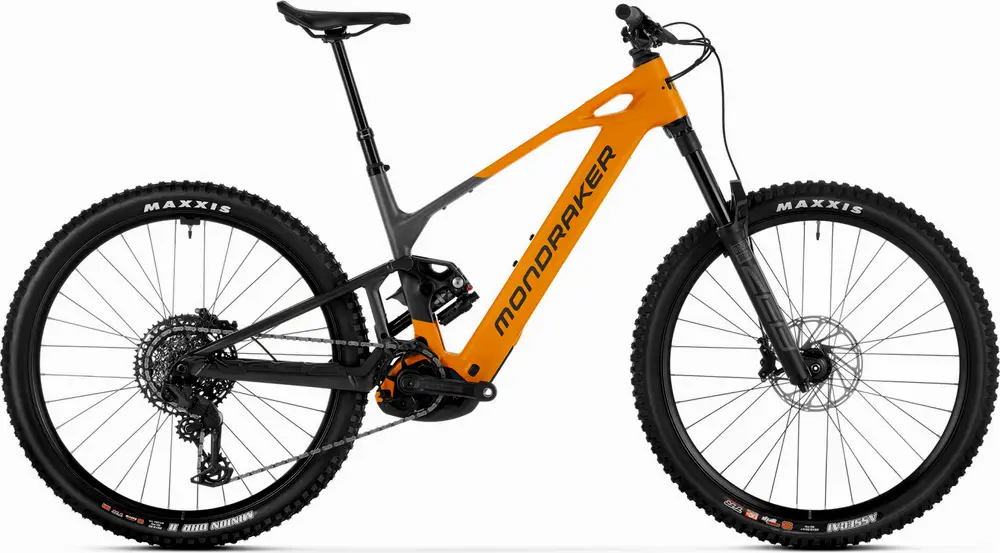

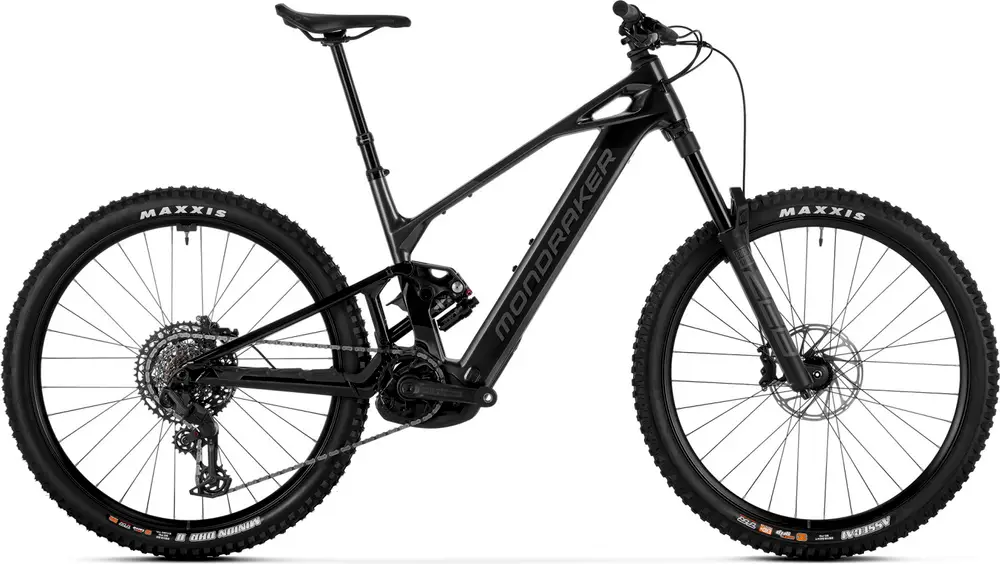

CRAFTY CARBON S
| Brak ocen | Zaloguj się i oceń |
Rower elektryczny enduro z pełnym zawieszeniem 29″ z karbonową ramą i komponentami wysokiej klasy.
Cena katalogowa
27 621 zł
6499 €
Typ roweru MTB
Kategoria Enduro
Rama Carbon
Zawieszenie Full, 160mm, 150mm
Widelec RockShox ZEB
Amortyzator Fox Float X Performance
Koła 29″, Aluminum
Napęd 1 × 12
Osprzęt SRAM, e*thirteen
Silnik Bosch 600W 85Nm mid-drive
Bateria Bosch 800Wh
Hamulce SRAM DB8 Hydraulic Disc
Specyfikacja
konstrukcja
|
Rama |
Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers., Hanger Standard: UDH, Colors: Brown / Black; Orange / Grey |
|
Widelec |
RockShox ZEB Base Rush RC 29, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload, Travel: 160mm, Spring Type: Air |
|
Amortyzator |
Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings, Travel: 150mm |
|
Łożysko |
Acros custom ZS56/ZS56, 1-1/8″, 1.5″ head tube, Internal cable routing, sealing plugs without blocklock |
|
Mostek |
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
|
Kierownica |
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
|
Siodełko |
Ergon SM-10 |
|
Sztyca |
X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531×200, Type: Dropper |
|
Pedały | |
|
Chwyty |
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size |
Osprzęt
|
Przerzutka tylna |
SRAM 70 Eagle, T-Type, 12s |
|
Korba |
E.13 Helix Core E*Spec Plus, All sizes: 160mm, Rings: SRAM Eagle 34T T-Type, direct mount, steel, CL55 |
|
Manetki |
SRAM Trigger 70, 12s, T-Type Actuation |
|
Kaseta | |
|
Łańcuch |
SRAM 70 T-Type, 12s Flattop, PowerLock |
|
Napinacz Łańcucha | |
|
Hamulce |
Front: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Type: SRAM DB8 Hydraulic Disc |
Koła
|
Obręcze |
WTB Sportterra Tough,6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
|
Szprychy |
WTB Straight gauge spokes & black brass locking nipples |
|
Piasta przednia |
WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts |
|
Piasta tylnia |
WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub |
|
Opony |
Front: Maxxis Assegai 29×2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead, Rear: Maxxis Minion DHR II 29×2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
Komponenty elektryczne
|
Silnik |
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) |
|
Bateria |
Bosch Powertube 800Wh |
|
Wyświetlacz |
Kiox 400 / Bosch Mini Remote |
|
Ładowarka | |
|
Sterowanie |
